1.14inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 240x135, SPI

R139.90  Inc VAT
R147.01
Qty:
Add to Cart
Print
Add to wish list - You'll need to login first.
The ST7789VW is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 240 source line and 320 gate line driving circuits. The resolution of this LCD is 135(H)RGB x 240(V), it supports horizontal mode and vertical mode, and it doesn't use all the RAM of the controller.
This LCD accepts 8-bits/9-bits/16-bits/18-bits parallel interface, that are RGB444, RGB565, RGB666. The color format used in demo codes is RGB565.
This LCD uses a 4-line SPI interface for reducing GPIO and fast speed.LCD



Features at a glance

  • 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
  • SPI interface, requires minimal IO pins
  • 1x joystick and 2x user buttons for easy interacting
  • Comes with development resources and manual (Raspberry Pi Pico C/C and MicroPython examples)

Specifications

Operating voltage2.6 ~ 5.5VResolution240×135 pixels
Communication Interface4-wire SPIDisplay size24.91 × 14.86mm
Display PanelIPSPixel size0.1101 × 0.1035mm
DriverST7789Dimensions52.00 × 25.00mm

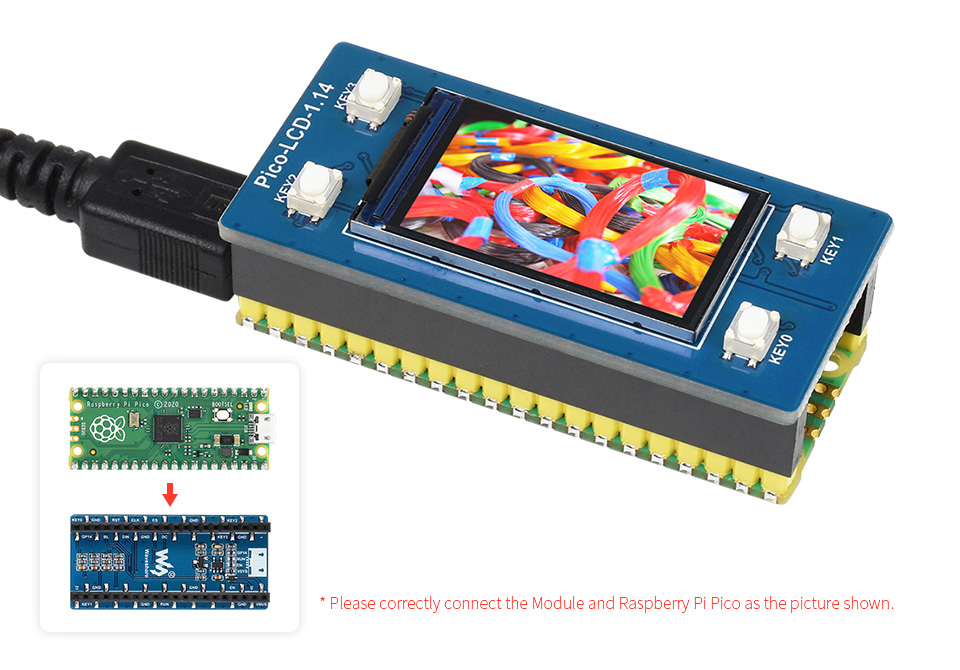

Raspberry Pi Pico header compatibility

  • Onboard female pin header for direct attaching to Raspberry Pi Pico
  • 1x joystick and 2x user buttons for easy interacting


Raspberry Pi Pico is NOT included.

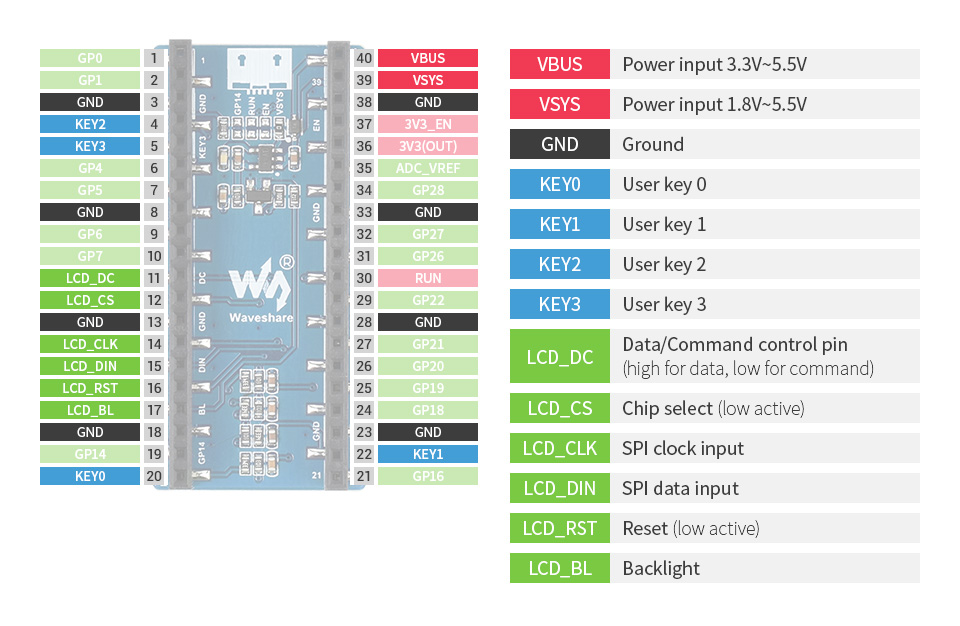

Pinout definition

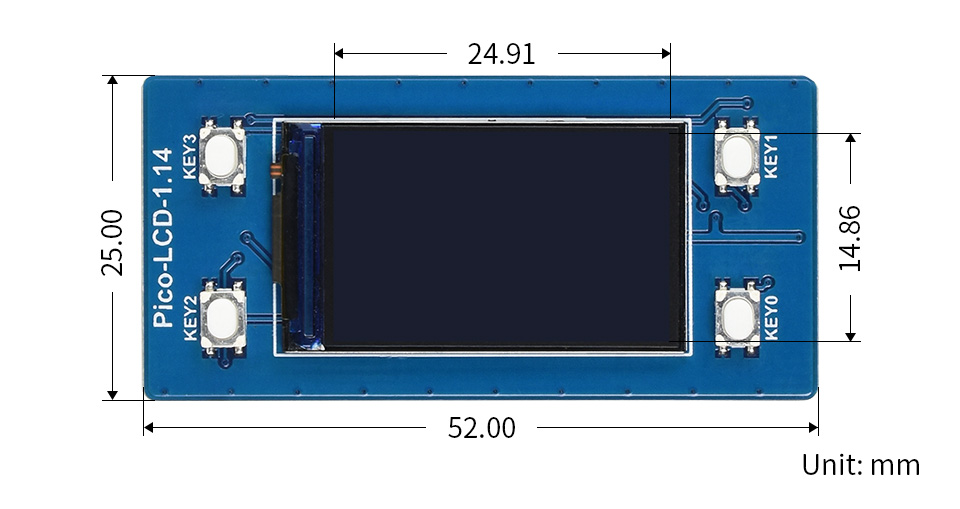

Outline dimensions


What's in the box?

1 x 1.14inch LCD Display Module for Raspberry Pi Pico

Resources

  • Availability: 27 In Stock
  • Model: ws pico display 240x135 SPI
  • Brand: WaveShare
