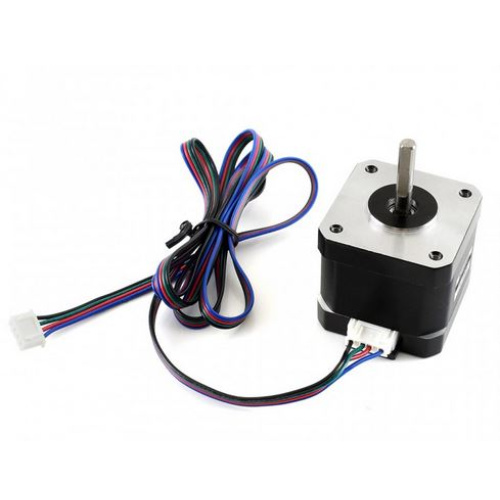

Nema 17 SM24240 Two-Phase Stepper Motor

R169.90  Inc VAT
Qty:
Add to Cart
Print
Add to wish list - You'll need to login first.
Specifications

  • Category: two-phase stepper motor
  • Step angle: 1.8°
  • Body length: 40mm
  • Rated current: 1.7A/Phase
  • Phase resistance: 2.4Ω
  • Phase inductance: 3.7mH
  • Holding torque: 0.45N.m
  • Rotor inertia: 54(g.c㎡)
  • Weight: 0.3kg
  • Compatible driver: SMD258C, Stepper Motor HAT

Dimensions

Wiring Configuration



Part NumberPhasesStep angle
(degree)		Body length
(mm)		Rated current
(A/Phase)		Phase resistance
(Ω)		Phase inductance
(mH)		Holding torque
(N.m)		Rotor inertia
(g.c㎡)		Weight
(kg)		Compatible driver
SM24240two-phase1.8401.72.403.70.45540.3SMD258C, Stepper Motor HAT
SM25776two-phase1.8763.01.001.61.904801.0SMD258C
SM35778three-phase1.2785.80.290.391.503801.1SMD356C


What's in the box?

1 x Nema 17 SM24240 Two-Phase Stepper Motor

You might want to cool down your stepper motor with a 40x40x11mm heatsink or need a mounting bracket.
