PoE Ethernet / USB HUB BOX for Raspberry Pi Zero Series(Zero not included), 3x USB 2.0, 802.3af-Compliant

PoE Ethernet / USB HUB BOX for Zero. Dull polish surface, well designed, nice & dust-proof. PoE 802.3af-compliant Ethernet Port | 3x USB 2.0 Ports.


Features at a glance

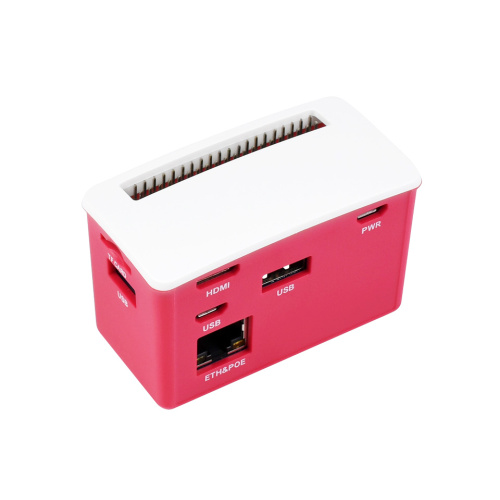

The PoE-ETH-USB-HUB-BOX is a HUB kit with PoE/ETH/USB HUB HAT inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. By using this small HUB BOX and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports.

•     Designed for Raspberry Pi Zero, compatible with Zero series boards

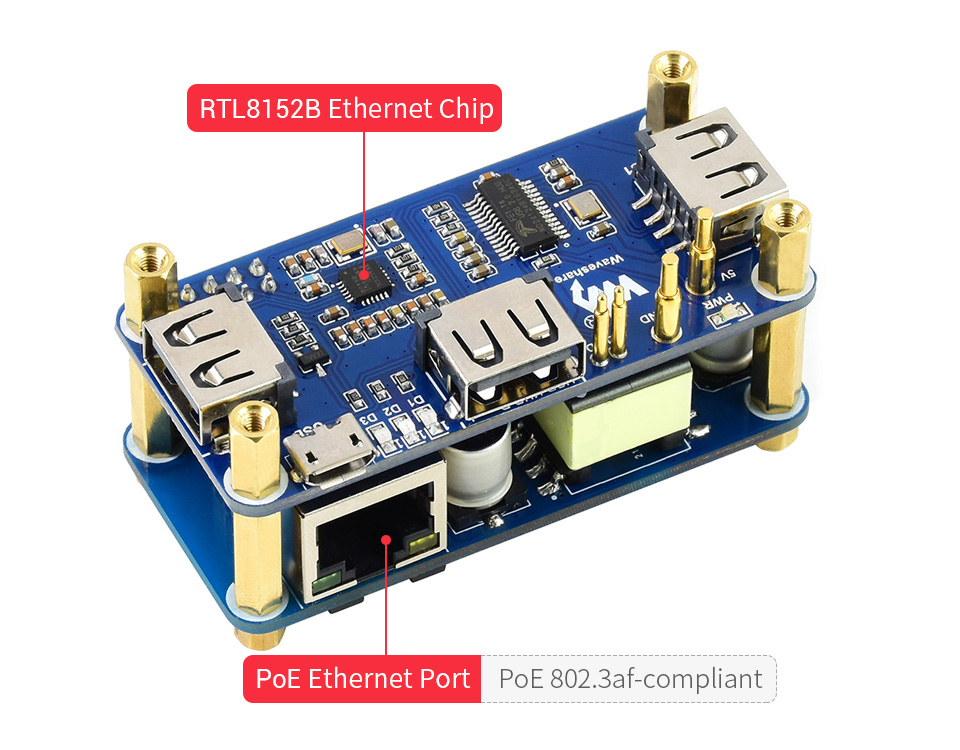

•     Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
•     PoE (Power over Ethernet) feature, 802.3af-compliant
•     Fully isolated SMPS (Switch Mode Power Supply)
•     3x extended USB ports, compatible with USB 2.0 / 1.1
•     Angle rounded design, smooth hand feeling, "simple snap" case lid
•     Quality ABS material, dull polish surface, anti-fingerprint
•     Comes with two different lids, changing as you like

Specifications

• PoE power input:     37V ~ 57V DC in
• Power output:     5V 2.5A DC out
• Network standard:     IEEE 802.3af-compliant PoE
• Dimensions:     72.80 × 37.50 × 45.80 mm

Compatible with Raspberry Pi Zero series

specialized pogo pin connection, dedicated cut-outs for Zero series, plug-and-play




1 x PoE/ETH/USB HUB HAT kit
1 x ABS case
1 x Rubber feet 4PCS
1 x Screws pack
