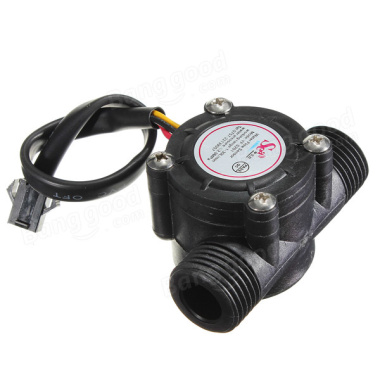

Hall Water Flow Sensor Flowmeter Water Control 2MPa
R62.90 Inc VAT
Features
Specifications
Application
Water heaters, water vending machines, flow measurement
What's in the box?
1 x Water flow sensor
Resources
Flow sensor Wiki
An instructable on how to use the Flow Sensor with Arduino
Adafruit experiment connecting the Flow Sensor to a Raspberry Pi
https://www.ardumotive.com/water-flow-sensor-en.html
RPi: https://www.youtube.com/watch?v=8JXd-2_zJQ0
- This product is mainly used for water metering
- High amplitude ≥ 4.6V
- Low amplitude ≤ 0.5V
- Electric strength 1250V/min
- Insulation resistance ≥ 100MΩ
- Hydrostatic pressure testing ≤ 2.0Mpa
Specifications
- The lowest rated working voltage: DC4.5 5V-24V
- Maximum operating current: 15 mA (DC 5V)
- Working voltage range: DC 5~18 v
- Load capacity: ≤ 10 mA (DC 5V)
- Use temperature: ≤ 80°C
- Operating humidity range: 35%~90%RH (no frost)
- Allowing pressure: pressure 2.0Mpa
- Temperature: -25~ 80 °C
- External threads: 1/2"
- Outer diameter: 20mm
- Intake diameter: 9mm
- Outlet diameter: 12mm
Application
Water heaters, water vending machines, flow measurement
What's in the box?
1 x Water flow sensor
Resources
Flow sensor Wiki
An instructable on how to use the Flow Sensor with Arduino
Adafruit experiment connecting the Flow Sensor to a Raspberry Pi
https://www.ardumotive.com/water-flow-sensor-en.html
RPi: https://www.youtube.com/watch?v=8JXd-2_zJQ0
- Availability: 9 In Stock
- Model: flow sensor
-
