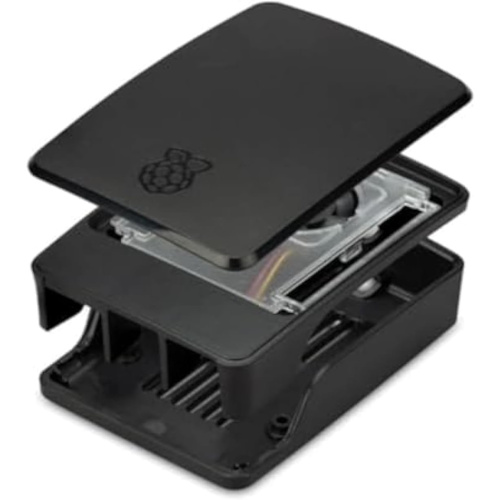

Raspberry Pi 5 official black/grey case with fan and heatsink

R189.90  Inc VAT
Order Quantity Price Per Item
3 R186.10
10 R183.25
30 R180.40
100 R175.66
Qty:
Add to Cart
Print
Add to wish list - You'll need to login first.



The official Case for Raspberry Pi 5 comes with an integrated fan. HATs can be fitted directly on top of Raspberry Pi 5 by removing the fan, or on top of the fan by use of 14mm high standoffs and a 19mm GPIO extender. These are available separately from Authorised Resellers.

The integrated 2.79 (max) CFM fan has fluid dynamic bearings selected for low noise and an extended operating lifetime. Air is drawn in through a 360° slot under the lid and blown over a heatsink attached to the BCM2712, then exhausted through connector apertures and vents in the base.



Features

  • Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5
  • 12mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processor
  • Easily removable lid exposes fan and breakout slot for cables and GPIO
  • Integrated mounting features allow for case stacking
  • HATs can be mounted to the enclosure with stand-offs and GPIO header extenders (not included)
  • Four silicone feet for the case are included


Specifications

  • Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
  • Fan speed control: Pulse width modulation control with tachometer
  • Maximum airflow: 2.79 CFM
  • Maximum fan speed: 8000 RPM +/- 15%
  • Case material: ABS (base, frame, lid) and PC (fan assembly)



The case is available in our signature red/white colour scheme at launch, with black/grey to follow.

What's in the box?

1 x black/grey case with fan

We also sell replacement fans for this case

Resources

Designing the perfect case and cooling
Case for Raspberry Pi 5 product brief and assembly instructions

  • Availability: 582 In Stock
  • Model: Pi5 official black/grey case
  • Brand: Raspberry Pi
