Overview
Raspberry Pi Compute Module 4 with Wi-Fi
Raspberry Pi Compute Module 4 harnesses the compute power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products. Key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K, hardware video decode at up to 4Kp60, up to 8GB of RAM, Gigabit Ethernet, USB 2.0, dual camera interfaces, and PCIe Gen 2 x1 interface. The optional dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0 have modular compliance certification. This allows the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market. Either the onboard antenna or an external antenna kit can be used.
Compute Module 4 has optional onboard eMMC of 8GB, 16GB or 32GB.
Specifications
- Form factor: 55 mm × 40 mm
- Processor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- Memory: 1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)
Connectivity
• Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with
onboard and external antenna options
• Onboard Gigabit Ethernet PHY supporting IEEE1588
• 1 × USB 2.0 interface
• PCIe Gen 2 x1 interface
• 28 GPIO signals
• SD card interface for SD card or external eMMC
(for use only with Compute Module 4 variants
without eMMC)
• Dual HDMI interface (up to 4Kp60 supported)
• 2-lane MIPI DSI display interface
• 2-lane MIPI CSI camera interface
• 4-lane MIPI DSI display interface
• 4-lane MIPI CSI camera interface
Multimedia
H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
Input power
5V DC
Operating temperature
0 to 80°C
Production lifetime
Raspberry Pi Compute Module 4 will remain in production until at least January 2028
Compliance
For a full list of local and regional product approvals, please visit
www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md
More details are available here
and a video discussion at https://www.youtube.com/watch?v=yiHgmNBOzkc&feature=youtu.be
Physical specifications
What's in the box?
1 x CM4 board
Have a look at the rest of our industrial related range
Resources
- Raspberry Pi Compute Module 4 product brief
- Raspberry Pi Compute Module 4 datasheet
- Compute Module 4 STEP file
- Compute Module 4 Lite (without eMMC) STEP file
WARNINGS
• Any external power supply used with Raspberry Pi Compute Module 4 shall comply with relevant
regulations and standards applicable in the country of intended use.
• This product should be operated in a well-ventilated environment, and if used inside a case, the case should not be covered.
• Whilst in use, this product should be placed on a stable, flat, non-conductive surface, and should not be contacted by conductive items.
• The connection of incompatible devices to Compute Module 4 may affect compliance, result in damage to the unit, and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use
and be marked accordingly to ensure that safety and performance requirements are met. These
articles include but are not limited to keyboards, monitors, and mice when used in conjunction with the Compute Module.
• The cables and connectors of all peripherals used with this product must have adequate insulation so that relevant safety requirements are met.
SAFETY INSTRUCTIONS
To avoid malfunction or damage to this product, please observe the following:
• Do not expose to water or moisture, or place on a conductive surface whilst in operation.
• Do not expose to heat from any source; Raspberry Pi Compute Module 4 is designed for reliable operation at normal ambient temperatures.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board
and connectors.
• Whilst it is powered, avoid handling the printed circuit board, or only handle it by the edges to minimise the risk of electrostatic discharge damage.
Overview
The Compute Module 4 IO Board is a companion board for Raspberry Pi Compute Module 4 (supplied separately). It is designed for use both as a development system for Compute Module 4 and as an embedded board integrated into end products.
The IO board is designed to allow you to create systems quickly using off-the shelf parts such as HATs and PCIe cards, which might include NVMe, SATA, networking, or USB. The major user connectors are located along one side to make enclosures simple.
Compute Module 4 IO Board also provides an excellent way to prototype systems using the Compute Module 4.
Specifications
• CM4 socket: suitable for all variants of Compute Module 4
• Standard Raspberry Pi HAT connectors with PoE support
• Standard PCIe Gen 2 x1 socket
• Real-time clock (RTC) with battery backup
• Dual HDMI connectors
• Dual MIPI camera connectors
• Dual MIPI display connectors
• Gigabit Ethernet socket supporting PoE HAT
• On-board USB 2.0 hub with 2 USB 2.0 connectors
• SD card socket for Compute Module 4 variants without eMMC
• Support for programming eMMC variants of Compute Module 4
• PWM fan controller with tachometer feedback
Input power: 12V input, 5V input with reduced functionality
(power supply not supplied)
Dimensions: 160 mm × 90 mm
What's in the box?
1 x CM4 IO board
1 x Compute Module 4 board CM4101032
1 x 12V power supply for the board
1 x CR2032 battery for the Real-time Clock backup
1 x heatsink designed for CM4
1 x enclosure for your CM4 IO board
1 x micro B USB to USB A cable to setup/update your CM4 via rpiboot
1 x antenna kit if your CM4 has onboard wifi
10 x Mini Jumpers to assist you with setup
Resources
- Raspberry Pi Compute Module 4 IO Board product brief
- Raspberry Pi Compute Module 4 IO Board datasheet
- Raspberry Pi Compute Module 4 IO Board KiCAD file
Production lifetime: The Raspberry Pi Compute Module 4 IO Board will remain in production until at least January 2028
More details are available here
and a video discussion at https://www.youtube.com/watch?v=yiHgmNBOzkc&feature=youtu.be
Compliance: For a full list of local and regional product approvals,
please visit
www.raspberrypi.org/documentation/
WARNINGS
• Any external power supply used with the Raspberry Pi Compute Module 4 IO Board shall comply with relevant regulations and standards applicable in the country of intended use.
• This product should be operated in a well-ventilated environment, and if used inside a case, the case should not be covered
• Whilst in use, this product should be placed on a stable, flat, non-conductive surface, and should not be contacted by conductive items.
• The connection of incompatible devices to the Compute Module 4 IO Board may affect compliance,
result in damage to the unit, and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met. These articles include but are not limited to keyboards, monitors, and mice when used in conjunction with the Compute Module 4 IO Board.
• The cables and connectors of all peripherals used with this product must have adequate insulation so that relevant safety requirements are met.
SAFETY INSTRUCTIONS
To avoid malfunction or damage to this product, please observe the following:
• Do not expose to water or moisture, or place on a conductive surface whilst in operation.
• Do not expose to heat from any source; the Raspberry Pi Compute Module 4 IO Board is designed for reliable operation at normal ambient temperatures.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board
and connectors.
• Whilst it is powered, avoid handling the printed
Overview
Raspberry Pi Compute Module 4 with Wi-Fi
Raspberry Pi Compute Module 4 harnesses the compute power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products. Key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K, hardware video decode at up to 4Kp60, up to 8GB of RAM, Gigabit Ethernet, USB 2.0, dual camera interfaces, and PCIe Gen 2 x1 interface. The optional dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0 have modular compliance certification. This allows the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market. Either the onboard antenna or an external antenna kit can be used.
Compute Module 4 has optional onboard eMMC of 8GB, 16GB or 32GB.
Specifications:
- Form factor: 55 mm × 40 mm
- Processor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- Memory: 1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)
Connectivity:
• Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with
onboard and external antenna options
• Onboard Gigabit Ethernet PHY supporting IEEE1588
• 1 × USB 2.0 interface
• PCIe Gen 2 x1 interface
• 28 GPIO signals
• SD card interface for SD card or external eMMC
(for use only with Compute Module 4 variants
without eMMC)
Video:
• Dual HDMI interface (up to 4Kp60 supported)
• 2-lane MIPI DSI display interface
• 2-lane MIPI CSI camera interface
• 4-lane MIPI DSI display interface
• 4-lane MIPI CSI camera interface
Multimedia:
H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
Input power:
5V DC
Operating temperature:
0 to 80°C
Production lifetime:
Raspberry Pi Compute Module 4 will remain in production until at least January 2028
Compliance:
For a full list of local and regional product approvals, please visit
www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md
More details are available here
and a video discussion at https://www.youtube.com/watch?v=yiHgmNBOzkc&feature=youtu.be
Physical specifications
WARNINGS
• Any external power supply used with Raspberry Pi Compute Module 4 shall comply with relevant
regulations and standards applicable in the country of intended use.
• This product should be operated in a well-ventilated environment, and if used inside a case, the case should not be covered.
• Whilst in use, this product should be placed on a stable, flat, non-conductive surface, and should not be contacted by conductive items.
• The connection of incompatible devices to Compute Module 4 may affect compliance, result in damage to the unit, and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use
and be marked accordingly to ensure that safety and performance requirements are met. These
articles include but are not limited to keyboards, monitors, and mice when used in conjunction with the Compute Module.
• The cables and connectors of all peripherals used with this product must have adequate insulation so that relevant safety requirements are met.
SAFETY INSTRUCTIONS
To avoid malfunction or damage to this product, please observe the following:
• Do not expose to water or moisture, or place on a conductive surface whilst in operation.
• Do not expose to heat from any source; Raspberry Pi Compute Module 4 is designed for reliable operation at normal ambient temperatures.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board
and connectors.
• Whilst it is powered, avoid handling the printed circuit board, or only handle it by the edges to minimise the risk of electrostatic discharge damage.
Documents
Lets you read the micro SD card(Not Included) in a standard SD card reader slot, whether on a laptop, or a PC bay with a card reader. Or it enables you to use the micro card in a device such as a standard camera or video recorder which uses a regular SD card.
What's in the box?
1 x Micro SD to SD Adapter
Please note this is the adapter only. Micro SD card is not included
Welcome to the latest generation of Raspberry Pi: the everything computer.
Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.
For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.
Specifications
Processor
Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU,
with cryptography extensions, 512KB per-core L2 caches, and a
2MB shared L3 cache
Features
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM
(4GB and 8GB SKUs available at launch)
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support
(requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals
(requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery
• Power button
Production lifetime
Raspberry Pi 5 will remain in production until at least January 2035
Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
What's in the box?
1 x Raspberry Pi 5 board
You might also need...
The Raspberry Pi board comes without the below items. Have a look at what else you still need to get going.
- download and install Raspberry Pi OS using Raspberry Pi imager or grab a uSD card with Raspberry Pi OS preloaded

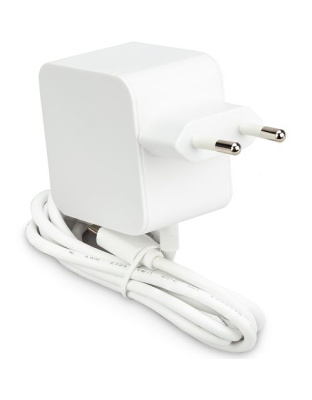

- a USB type C power supply available in white or black
- a micro HDMI cable or HDMI adapter
- an enclosure/case for your Pi
- a battery for your RTC
- an active cooler for RPi5
- a keyboard and mouse
Resources
Welcome to the latest generation of Raspberry Pi: the everything computer.
Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.
For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.
Specifications
Processor
Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU,
with cryptography extensions, 512KB per-core L2 caches, and a
2MB shared L3 cache
Features
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM
(4GB and 8GB SKUs available at launch)
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support
(requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals
(requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery
• Power button
Production lifetime
Raspberry Pi 5 will remain in production until at least January 2035
Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
What's in the box?
1 x Raspberry Pi 5 board
You might also need...
The Raspberry Pi board comes without the below items. Have a look at what else you still need to get going.
- download and install Raspberry Pi OS using Raspberry Pi imager or grab a uSD card with Raspberry Pi OS preloaded
- a USB type C power supply available in white or black
- a micro HDMI cable or HDMI adapter
- an enclosure/case for your Pi
- a battery for your RTC
- an active cooler for RPi5
- a keyboard and mouse
Resources
The new 27W USB-C PD (Power Delivery) Power Supply will deliver a maximum of 5.1V, 5A enabling the Raspberry Pi 5 to power a wider range of peripherals.
The total power drawn from the four USB ports on Raspberry Pi 5 is limited by default to a nominal 600mA; this limit is automatically increased to a nominal 1.6A when the USB-C PD Power Supply is detected.
The USB-C PD Power Supply is also capable of delivering 3A @ 9V, 2.25A @ 12V, and 1.8A @ 15V to PD-compatible products, making it a good cost-effective power supply for many general-purpose, non-Raspberry Pi use cases.
Specifications
- Input: 100-240VAC
- Output: 5A @ 5.1V, 3A @ 9V, 2.25A @ 12V, 1.8A @ 15V
- Connector: USB-C
- Cable: 1.2m, 18awg
- Colours White, black
- Plug Types: US, Canada (type A), Europe (type C),UK (type G)
What's in the box?
1 x Power supply
You will also need a euro plug adapter
The new 27W USB-C PD (Power Delivery) Power Supply will deliver a maximum of 5.1V, 5A enabling the Raspberry Pi 5 to power a wider range of peripherals.
The total power drawn from the four USB ports on Raspberry Pi 5 is limited by default to a nominal 600mA; this limit is automatically increased to a nominal 1.6A when the USB-C PD Power Supply is detected.
The USB-C PD Power Supply is also capable of delivering 3A @ 9V, 2.25A @ 12V, and 1.8A @ 15V to PD-compatible products, making it a good cost-effective power supply for many general-purpose, non-Raspberry Pi use cases.
Specifications
- Input: 100-240VAC
- Output: 5A @ 5.1V, 3A @ 9V, 2.25A @ 12V, 1.8A @ 15V
- Connector: USB-C
- Cable: 1.2m, 18awg
- Colours White, black
- Plug Types: US, Canada (type A), Europe (type C),UK (type G)
What's in the box?
1 x Power supply
You will also need a euro plug adapter

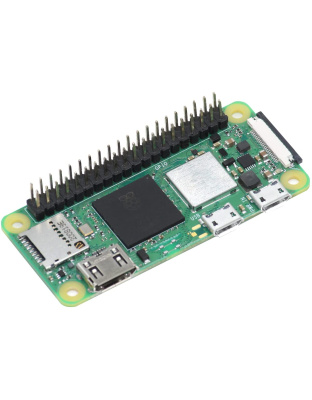

This is an official Raspberry Pi Zero 2 W with a factory pre-soldered header.
Raspberry Pi Zero 2 W is the latest product in our most affordable range of single-board computers. The successor to the breakthrough Raspberry Pi Zero W, Raspberry Pi Zero 2 W is a form factor–compatible drop-in replacement for the original board.
The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP), integrating a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM. The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero.
Raspberry Pi Zero 2 W offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along with support for Bluetooth Low Energy (BLE), and modular compliance certification.
The board has a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. It is powered via a micro USB socket. Video output is via a mini HDMI port; composite video output can easily be made available via test points if needed.
Sharing the same form factor as the original Raspberry Pi Zero, Raspberry Pi Zero 2 W fits inside most existing Raspberry Pi Zero cases.
Specifications
Form factor: 65mm × 30mm
Processor: Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)
Memory: 512MB LPDDR2
Connectivity:
• 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE, onboard antenna
• 1 × USB 2.0 interface with OTG
• HAT-compatible 40-pin I/O header footprint
• microSD card slot
• Mini HDMI port
• CSI-2 camera connector
Video:
• HDMI interface
• Composite video
Multimedia:
• H.264, MPEG-4 decode (1080p30)
• H.264 encode (1080p30)
• OpenGL ES 1.1, 2.0 graphics
Input power: 5V DC 2.5A
Operating temperature: -20°C to 70°C
What's in the box?
1 x Raspberry Pi Zero 2 W with presoldered header
You might also need...
The Raspberry Pi board comes without the below items. Have a look at what else you still need to get.
- download install Raspberry Pi OS using Raspberry Pi imager or grab a uSD card with Raspberry Pi OS preloaded
- a USB micro Bpower supply
- a mini HDMI cable or HDMI mini adapter
- an enclosure/case for your Pi Zero
- a keyboard and mouse
Resources
- Raspberry Pi Operating System Downloads https://www.raspberrypi.org/downloads/
- Getting Started with Raspberry Pi
- For a step-by-step guide to getting your Pi up and running, check out our online Getting started guide.
- There are loads of projects to get started on with your Raspberry Pi Zero in our learning resources area
Production lifetime: Raspberry Pi Zero 2 W will remain in production until at least January 2028
Compliance: For a full list of local and regional product approvals,
please visit pip.raspberrypi.com
WARNINGS
• Any external power supply used with Raspberry Pi Zero 2 W shall comply with relevant regulations and standards applicable in the country of intended use.
• This product should be operated in a well-ventilated environment, and if used inside a case, the case should not be covered.
• Whilst in use, this product should be placed on a stable, flat, non-conductive surface, and should not be contacted by conductive items.
• The connection of incompatible devices to Raspberry Pi Zero 2 W may affect compliance, result in damage to the unit, and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met. These articles include but are not limited to
keyboards, monitors, and mice when used in conjunction with Raspberry Pi Zero 2 W.
• The cables and connectors of all peripherals used with this product must have adequate insulation so that relevant safety requirements are met.
SAFETY INSTRUCTIONS
To avoid malfunction or damage to this product, please observe the following:
• Do not expose to water or moisture, or place on a conductive surface whilst in operation.
• Do not expose to heat from any source; Raspberry Pi Zero 2 W is designed for reliable operation at normal ambient temperatures.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
• Whilst it is powered, avoid handling
Welcome to the latest generation of Raspberry Pi: the everything computer.
Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.
For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.
Specifications
Processor
Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU,
with cryptography extensions, 512KB per-core L2 caches, and a
2MB shared L3 cache
Features
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM
(2GB, 4GB and 8GB)
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support
(requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals
(requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery
• Power button
Production lifetime
Raspberry Pi 5 will remain in production until at least January 2035
Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
What's in the box?
1 x Raspberry Pi 5 board
You might also need...
The Raspberry Pi board comes without the below items. Have a look at what else you still need to get going.
- download and install Raspberry Pi OS using Raspberry Pi imager or grab a uSD card with Raspberry Pi OS preloaded
- a USB type C power supply available in white or black
- a micro HDMI cable or HDMI adapter
- an enclosure/case for your Pi
- a battery for your RTC
- an active cooler for RPi5
- a keyboard and mouse
Resources
In comparison with its predecessor, RP2040, RP235x offers:
- A 150MHz system clock (versus 133MHz)
- Dual Arm Cortex-M33 cores (versus dual Arm Cortex-M0+)
- Dual RISC-V Hazard3 cores
- 520KB RAM (versus 264KB)
- 8KB on-chip OTP storage
- A comprehensive security model, based on Arm TrustZone for Cortex-M
- Greatly improved power efficiency
Raspberry Pi Pico 2 pairs RP2350 with 4MB of on-board QSPI Flash memory (versus 2MB on Raspberry Pi Pico) for code and data storage.
1 x Raspberry Pi Pico 2 board
- Micro-USB cable - To provide power from your computer and program the board.
- While Raspberry Pi Pico does not come with anything soldered to its pads, we will recommend that users fit 2.54mm pitch male pin strip headers.
- Breadboard for Pico - A special breadboard from Monk Makes with printed Raspberry Pi Pico pinout to make projects easier!
Resources
- Raspberry Pi Pico Support docs available here
- Raspberry Pi Pico 2 announcement blog post
- Raspberry Pi Pico 2 product brief
- Raspberry Pi Pico 2 Pinout
- Raspberry Pi Pico 2 MicroPython SDK
- Raspberry Pi Pico 2 C/C++ SDK
- Raspberry Pi Product Information Portal (PIP)
- RP2350 Information
- Our Raspberry Pi Pico Tutorials
- Micropython website
- Raspberry Pi Pico 2 STEP file
- Raspberry Pi Pico 2 Fritzing part
- Raspberry Pi Pico 2 design files (Cadence Allegro)
Based on the Sony IMX500 Intelligent Vision Sensor, the Raspberry Pi AI Camera supports on-board processing for a variety of popular neural network models, leaving the processor in the host Raspberry Pi free to perform other operations.
Specifications
- 12MP Sony IMX500 Intelligent Vision Sensor
- Integrated low-power inference engine
- Pre-loaded with MobileNet machine vision model
- 76-degree field of view
- Manually adjustable focus
- Supplied with 200mm cables for connection to all Raspberry Pi computers
What's in the box?
1 x AI Camera
Resources
- Raspberry Pi documentation
- Launch blog post
- Product brief
- Getting Started Guide
- examples and neural networks in our model zoo
- Sony’s AITRIOS Developer site has more technical resources
- IMX500 Converter and IMX500 Package documentation
Let's you store your micro SD card using a regular SD card adapter(adapter and micro sd are not included).
What's in the box?
1 x SD card Jewel Case
Please note: cases and enclosures designed for the original Raspberry Pi 7" Touchscreen display will not fit the new Touch Display 2. The frame size and mounting holes are different.
Raspberry Pi Touch Display 2 is the long-awaited successor to our popular 7” Touch Display. It is a portrait-native display offering:
- 7” diagonal display size
- 85-degree viewing angle
- 24-bit RGB
- 720x1280-pixel resolution
- True multi-touch capacitive panel with five-finger touch
We are currently working on a frame/stand for this display.....
What's in the box?
1 x RPi Touch Display 2
You might also need the Display 2 frame and stand in black acrylic
Resources
Welcome to the latest generation of Raspberry Pi: the everything computer.
Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.
For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.
Specifications
Processor
Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU,
with cryptography extensions, 512KB per-core L2 caches, and a
2MB shared L3 cache
Features
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM
(2GB, 4GB, 8GB and 16GB available)
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support
(requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals
(requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery
• Power button
Production lifetime
Raspberry Pi 5 will remain in production until at least January 2035
Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
What's in the box?
1 x Raspberry Pi 5 board
You might also need...
The Raspberry Pi board comes without the below items. Have a look at what else you still need to get going.
- download and install Raspberry Pi OS using Raspberry Pi imager or grab a uSD card with Raspberry Pi OS preloaded
- a USB type C power supply available in white or black
- a micro HDMI cable or HDMI adapter
- an enclosure/case for your Pi
- a battery for your RTC
- an active cooler for RPi5
- a keyboard and mouse
Resources
In support of our environmental sustainability goals, Raspberry Pi Carbon Removal Credits offer customers the opportunity to offset the carbon emissions associated with the manufacture, shipping and disposal of their Raspberry Pi single-board computer.
A Raspberry Pi Carbon Removal Credit takes the form of a credit-card-sized piece of card, bearing a unique verifiable serial number. For each card produced, we purchase 6.5kg of high-quality “enhanced rock weathering” carbon offsets from UNDO Carbon. These offsets are generated by spreading crushed basalt on farmland, absorbing the rated quantity of carbon from the atmosphere over a period of at most twenty years.
What's in the box?
1 x carbon removal credits card
Resources
The Raspberry Pi Compute Module 5 IO Board provides a starting point for those wishing to integrate Raspberry Pi Compute Module 5 into products, while also serving as an alternative Raspberry Pi form factor for industrial applications. It breaks out the full set of peripheral interfaces provided by Compute Module 5 to the standard connectors used by Raspberry Pi 5 (with full-size HDMI in place of micro-HDMI), enabling design engineers to take full advantage of the processing and interfacing capabilities of our flagship modular product.
Specifications
- 160 mm × 90 mm form factor
- Standard 40-pin GPIO header
- Gigabit Ethernet RJ45 with PoE+ HAT+ support
- 2 × USB 3 sockets
- microSD card socket for CM5 Lite modules
- M.2 M key PCIe socket
- 4-pin fan connector
- 2 × MIPI DSI/CSI-2 FPC connectors (22-pin 0.5 mm pitch cable)
- Raspberry Pi HAT+ connector
- RTC battery socket
- 2 × full-size HDMI 2.0 connectors
- External +5V USB-C PSU
- Power button to wake and shut down Compute Module 5
What's in the box?
1 x Compute Module 5 IO Board
You may also need a case for this board
Resources

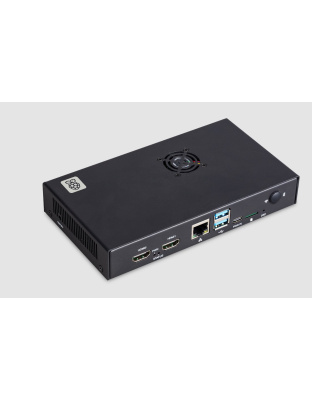

The IO Case has slots to enable the connection of cameras or DSI displays, and includes a built-in controllable fan to support thermal regulation for higher-power applications. Cut-outs in the side of the case allow access to HDMI, Ethernet, USB-A, and USB-C (power in) connectors and to the SD card slot, and there is a mounting hole for an external wireless/Bluetooth antenna.
Specifications
Case
- 170 mm × 94 mm × 28 mm
- Approx 350g weight
- Sheet metal construction
DC brushless fan
- 5V DC (3.5 – 5.5V) supplied via four-pin fan header on a carrier board
- ≥ 3.5V start voltage
- 0.85W power consumption
- 0.18 ± 0.02A rated current
- 8000 RPM ± 15% (at 25℃, after 3 – 5 minutes rotating) maximum fan speed
- 2.46 CFM maximum airflow
- 21.7 dB noise level
- 150 mm cable length
What's in the box?
1 x Compute Module 5 IO Case
You will also need the CM5 IO board
Resources
Please Note: Product Pic is for illustration purposes only. The actual product may vary depending on which model of the CM5 you purchase.
We also have the Raspberry Pi Development Kit for Compute Module 5 available to assist designers, offering an ideal environment for prototyping embedded solutions.

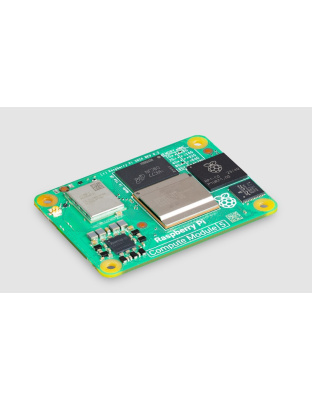

The Compute Module 5 (CM5) combines the internals of a Raspberry Pi 5 (the BCM2712 processor and 2GB, 4GB, or 8GB of RAM) with optional 0GB (Lite), 16GB, 32GB or 64GB of eMMC flash storage.
CM5 uses the same form factor as CM4, featuring two 100-pin high density connectors.
Compute Module 5 gives you everything you love about Raspberry Pi 5, but in a smaller package:
- A 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
- A VideoCore VII GPU, supporting OpenGL ES 3.1 and Vulkan 1.3
- Dual 4Kp60 HDMI® display output
- A 4Kp60 HEVC decoder
- Optional dual-band 802.11ac Wi-Fi® and Bluetooth 5.0
- 2 × USB 3.0 interfaces, supporting simultaneous 5Gbps operation
- Gigabit Ethernet, with IEEE 1588 support
- 2 × 4-lane MIPI camera/display transceivers
- A PCIe 2.0 x1 interface for fast peripherals
- 30 GPIOs, supporting 1.8V or 3.3V operation
- A rich selection of peripherals (UART, SPI, I2C, I2S, SDIO, and PWM)
Compute Module 5 is mechanically compatible with its predecessor, Compute Module 4, exposing all signals through a pair of high-density perpendicular connectors, which attach to corresponding parts on the customer’s carrier board. Additional stability is provided by four M2.5 mounting holes arranged at the corners of the board.
There are a small number of changes to the pin-out and electrical behaviour of the module, mostly associated with the removal of the two two-lane MIPI interfaces, and the addition of two USB 3.0 interfaces. A detailed summary of these changes can be found in the Compute Module 5 datasheet.
What's in the box?
1 x CM5(Model as per product name)
Compute Module 5 Accessories you might need...
- Raspberry Pi Compute Module 5 Dev Kit
- Raspberry Pi Compute Module 5 IO Board
- Raspberry Pi Compute Module 5 IO Case
- Raspberry Pi Compute Module 5 Passive Cooler
- Raspberry Pi Compute Module 4/5 Antenna Kit
Resources
- Compute Module Hardware Documentation
- Compute Module 5 datasheet
Please Note: Product Pic is for illustration purposes only. The actual product may vary depending on which model of the CM5 you purchase.
We also have the Raspberry Pi Development Kit for Compute Module 5 available to assist designers, offering an ideal environment for prototyping embedded solutions.
The Compute Module 5 (CM5) combines the internals of a Raspberry Pi 5 (the BCM2712 processor and 2GB, 4GB, or 8GB of RAM) with optional 0GB (Lite), 16GB, 32GB or 64GB of eMMC flash storage.
CM5 uses the same form factor as CM4, featuring two 100-pin high density connectors.
Compute Module 5 gives you everything you love about Raspberry Pi 5, but in a smaller package:
- A 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
- A VideoCore VII GPU, supporting OpenGL ES 3.1 and Vulkan 1.3
- Dual 4Kp60 HDMI® display output
- A 4Kp60 HEVC decoder
- Optional dual-band 802.11ac Wi-Fi® and Bluetooth 5.0
- 2 × USB 3.0 interfaces, supporting simultaneous 5Gbps operation
- Gigabit Ethernet, with IEEE 1588 support
- 2 × 4-lane MIPI camera/display transceivers
- A PCIe 2.0 x1 interface for fast peripherals
- 30 GPIOs, supporting 1.8V or 3.3V operation
- A rich selection of peripherals (UART, SPI, I2C, I2S, SDIO, and PWM)
Compute Module 5 is mechanically compatible with its predecessor, Compute Module 4, exposing all signals through a pair of high-density perpendicular connectors, which attach to corresponding parts on the customer’s carrier board. Additional stability is provided by four M2.5 mounting holes arranged at the corners of the board.
There are a small number of changes to the pin-out and electrical behaviour of the module, mostly associated with the removal of the two two-lane MIPI interfaces, and the addition of two USB 3.0 interfaces. A detailed summary of these changes can be found in the Compute Module 5 datasheet.
What's in the box?
1 x CM5(Model as per product name)
Compute Module 5 Accessories you might need...
- Raspberry Pi Compute Module 5 Dev Kit
- Raspberry Pi Compute Module 5 IO Board
- Raspberry Pi Compute Module 5 IO Case
- Raspberry Pi Compute Module 5 Passive Cooler
- Raspberry Pi Compute Module 4/5 Antenna Kit
Resources
- Compute Module Hardware Documentation
- Compute Module 5 datasheet
