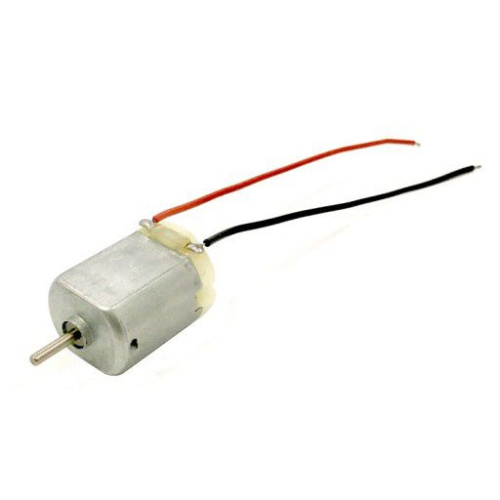

DC 3V Mini Motor 130
R16.90 Inc VAT
This high-power, 130-size brushed DC motor can be used as a direct replacement for lower-power 130-size motors to get more torque and speed out of your gearmotor, but it will also draw more current and typically wear out faster.
It has a recommended operating voltage of 1.5 V to 3 V, but it can operate at higher voltages to provide more power in exchange for longevity of the motor.
Approximate specifications at 3 V: free-run speed of 20,000 RPM, free-run current of 350 mA, stall current of 4 A, stall torque of 55 gf-cm (0.75 oz-in).
Specifications
It has a recommended operating voltage of 1.5 V to 3 V, but it can operate at higher voltages to provide more power in exchange for longevity of the motor.
Approximate specifications at 3 V: free-run speed of 20,000 RPM, free-run current of 350 mA, stall current of 4 A, stall torque of 55 gf-cm (0.75 oz-in).
Specifications
- Motor size: 38x20x15mm
- Shaft diameter: 2mm
- Axial length: 9mm
- Voltage: 3-6V
What's in the box?
1 x DC 3V Mini Motor
Resources
Getting started with Raspberry Pi gpiozeroMotors
Controlling DC Motors Using Python With a Raspberry Pi
Resources
Getting started with Raspberry Pi gpiozeroMotors
Controlling DC Motors Using Python With a Raspberry Pi
- Availability: 43 In Stock
- Model: 3V dc motor mini
-
Brand:
