USB 3.1 to M.2 Dual Protocol (NVMe/NGFF) B+M Key with USB-C Cable

R541.54  Inc VAT
Order Quantity Price Per Item
3 R530.70
10 R522.58
30 R514.46
100 R500.92
Qty:
Add to Cart
Print
Add to wish list - You'll need to login first.

Note: This M.2 case is compatible with both NVMe and SATA SSD.

Some people must be tired of using small SD cards as memory space with low performance and specifications. It's time to change! Let's upgrade to SSD storage instead of using the normal SD card. The problem is most computer, smartphone, and Raspberry Pi does not have the socket for SSD storage. To overcome this problem, you just need a portable drive!

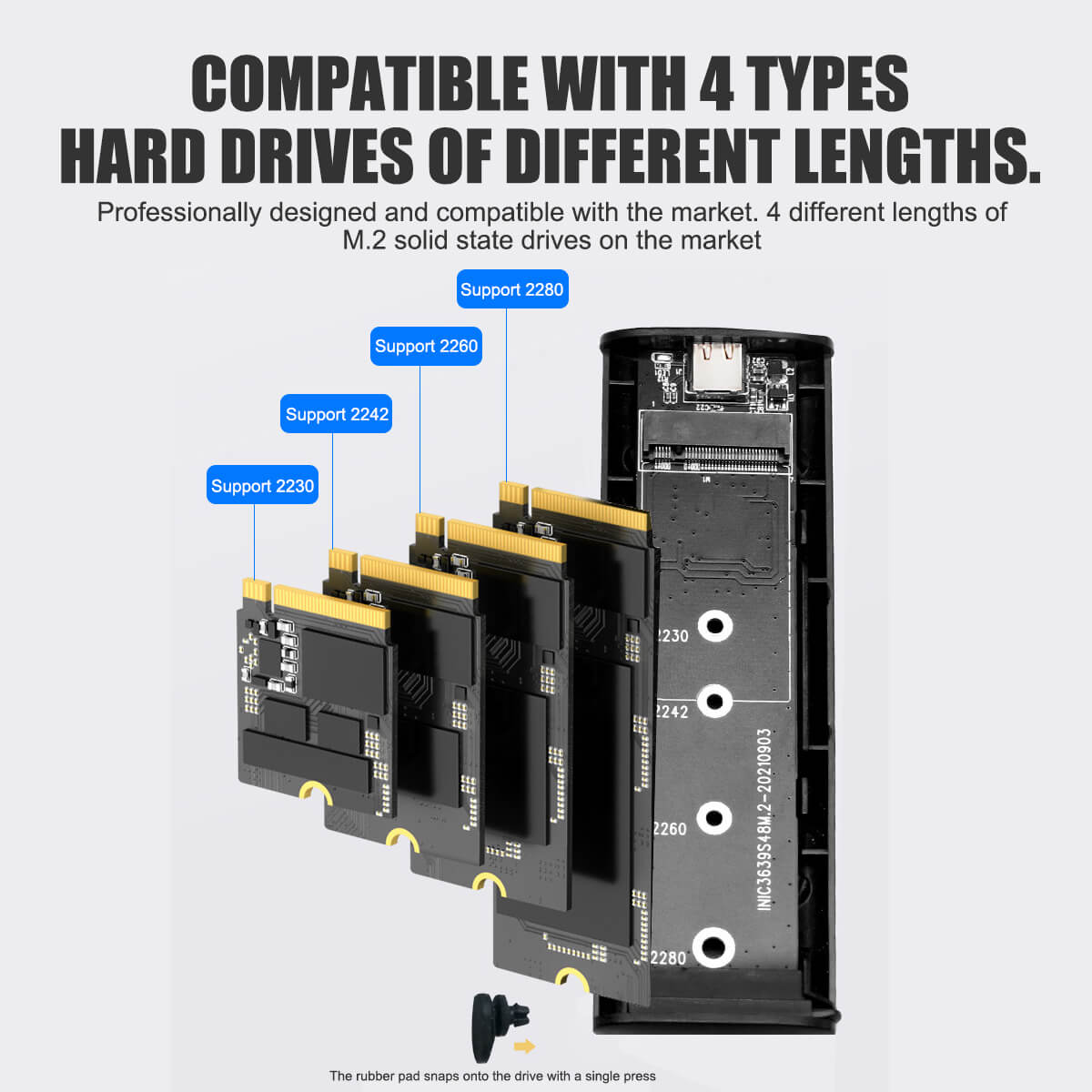

Plus, this case can be used with 4 variations of M.2 size (2230, 2242, 2260, 2280). It also comes with a USB C to USB 3.0 cable, so that you can directly connect to Raspberry Pi or any computer.

With this external M.2 NVMe storage, you can just boot the preferred Operating System for the Raspberry Pi 4 Model B direct from the USB! Interesting right? You just have to slot in your M.2 NVMe with preloaded Raspberry Pi OS and plug it into your RPi board. No driver is needed. Plug and play, straight out of the box. :)

Features



  • Using NVMe high-speed technology
  • USB3.1 Gen 2 interface, transmission speed up to 6Gbps / 10Gbps
  • Aluminum alloy shell, durable, easy to carry, and fast heat dissipation
  • Easy installation, no need screw to install the case
  • Support Raspbian, Windows, Macintosh OS, Linux, and Android systems
  • Support Raspberry Pi board, PC, Macbook, smart TV, Android type-C mobile phone, and other digital devices






Specifications

  • Enclosure Type: Dual protocol (can support both NGFF/NVMe)
  • Material: Aluminum alloy
  • Color: Silver
  • Master Chip: Xingshuo 225
  • Hard Disk Protocol:
    • M.2 NGFF
    • M.2 NVMe
    • M.2 NGFF/NVMe
  • Speed: 5Gbps @ 10Gbps
  • Input Interface: Type-C
  • Hard Disk Interface: M-key, B+M Key
  • Compatible SSD Size: 2230/2242/2260/2280
  • Weight: 70g
  • Dimension: 105mm x 38mm x 12mm

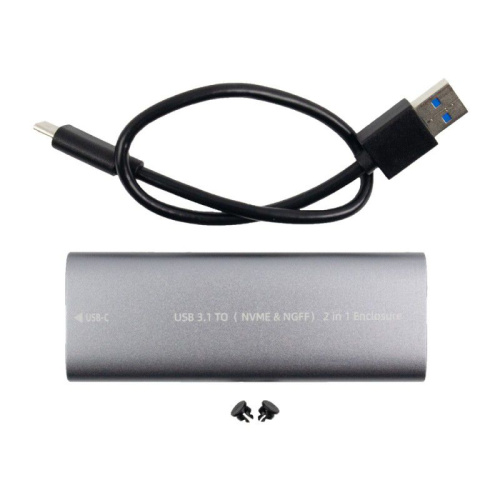

What's in the box?

1 x USB 3.1 to M.2 Dual Protocol (NVMe/NGFF) B+M Key
1 x USB-C to USB 3.0 cable
2 x Mounting Screws

You might also need a NVMe drive.

Resources

Installation Guide


  • Availability: 2 In Stock
  • Model: nvme usb chassis silver
  • Brand: Generic3
